CNC busbar angle chamfer milling machine

CNC busbar angle milling machine is Special equipment for processing CNC bidirectional copper bus bar (row width direction and row thickness direction)
arc angle; X, Y, Z three-axis servo numerical control, the spindle motor is a variable frequency motor,Spindle speed is 0-350 rpm, high milling smoothness:
According Cutting capacity required at each position, intelligent control of rotation speed in sections.

Description

Description

CNC busbar angle chamfer milling machine Specifications

MODELUNITAKS-CM-150
COPPER BAR PROCESSING THICKINESSMM3 TO 12
COPPER BAR PROCESSING WIDTHMM20 TO 140
MIN.COPPER BAR PROCESSING LENGTHMM150
BUSBAR LENGTH DIRECTION (X AXLE) STROKEMM200
BUSBAR WIDTH DIRECTION (Y AXLE) STROKEMM220
TOOL HOLDER UP AND DOWN DIRECTION(Z AXLE) STROKEMM100
MAIN SPINDLE TAPER BT40
TOTAL POERKW10
MAIN SPINDLE MOTOR POWER KW4 INVERTED CONTROL
MAX. MAIN SPINDLE ROTARYRPM3500
POSITIONING ACCURACYMM±0.03
REPEATED POSITIONING ACCURACYMM±0.01
WEIGHTTON2.6

CNC busbar angle chamfer milling machine Applications and Features

Application: CNC busbar angle milling machine is Special equipment for processing CNC bidirectional copper bus bar (row width direction and row thickness direction)arc angle; X, Y, Z three-axis servo numerical control, the spindle motor is a variable frequency motor,Spindle speed is 0-350 rpm, high milling smoothness:According Cutting capacity required at each position, intelligent control of rotation speed in sections.

Features:

1.This equipment processes the R-arc in one shot of the thickness direction and width direction of the busbar.
Simple operation, no manual programming, direct input of busbar width and busbar thickness according to workpiece processing requirements
And R angle value, you can start automatic processing.

2.The main parameters of the busbar are input intelligent processing program, according to the input busbar processing parameters.
Automatically generate machine processing programs and visually display the actual results after busbar processing on the man-machine interface.

3.Central pliers are used for copper busbar clamping (both sides are clamped and pressed up and down): according to the width change of the busbar
intelligently controls the machining zero position and the length of the busbar clamping end extension (no manual adjustment required for
the positioning point), the device is easy to operate and use, with high degree of intelligent automation and stable performance.

4.The equipment adopts the internationally renowned brand Siemens 808D CNC system, with closed-loop detection and correction.
Error compensation function, eliminates Deviations and scrapped parts due to signal interference caused by PLC programming in open-loop operation.

5.The machine tool bed adopts a welded structure and is effectively treated by high temperature tempering.No deformation, low vibration and low noise during work. Equipment configuration high performance large specification linear guide Rail and ball screw, high precision machining and stable performance.

6.Specialized modular input for man-machine interface operation, easy to learn and easy to operate.

7.According to customer requirements, 8-tool bucket type magazine can be added, this magazine has automatic change
Knife function.

CNC busbar angle chamfer milling machine Structure and Components

CNC busbar angle chamfer milling machine Structure and Components

CNC busbar angle chamfer milling machine Structure and Components-1

CNC busbar angle chamfer milling machine Produced Busbar Samples

CNC busbar angle chamfer milling machine Produced Busbar Samples

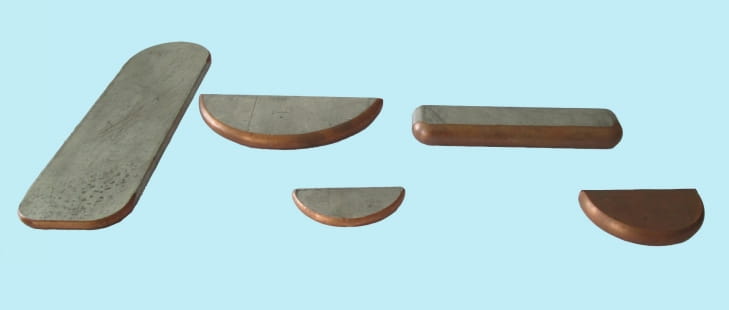

CNC busbar angle chamfer milling machine Produced Busbar Samples-1

CNC busbar angle chamfer milling machine Produced Busbar Samples-1
