Open Type Hydraulic Busbar Forming Machine Specifications
|MAX. PROCESS ANGLE||DEGREE||90|
|BENDING PROCESS SIZE(FLAT)||MM||200*15|
|BENDING PROCESS SIZE(VERTICAL)||MM||125*15|
|MAIN MOTOR POWER||KW||7|
|BENDING MAX. STROKE||MM||250|
|SIDE MATERIAL BLOCK STROKE||MM||2000|
|SIDE MATERIAL BLOCK MAX. SPEED(X AXLE)||M/MIN.||15|
|BENDING AXLE MAX. SPEED(Y AXLE)||M/MIN.||5/1.25|
|MIN. U SHAPE BENDING WIDTH||MM||40|
Open Type Hydraulic Busbar Forming Machine Applications and Features
1.With functions of various shape bus bar forming.
2.NC bus bar bending machine is a computer-controlled bus bar bending processing special equipment. The X-axis and Y-axis movements cooperate with each other to manually feed materials to complete various bending actions. Selecting different molds can complete the process of plane bending and side bending of the busbar. This machine can be used in conjunction with 3D software. The software can accurately calculate the bending unfolding length for workpieces with a large number of bending times. It can automatically find the bending sequence, and realize programming automation to simulate the bending process. Place the busbar according to the simulated bending sequence. Avoid incorrect bending position.
3.CNC servo busbar bending machine is a processing equipment for copper and aluminum bar bending. CNC busbar bending machine uses high-power servo motor as power, PLC control unit, high processing efficiency, accurate positioning, and complete machine automation. Leading level in the industry; widely used in high and low voltage switchgear and transformer manufacturing. Box-type substations, bus ducts and other industries.
4.Touch screen: human-machine interface, simple operation, real-time reflection of program running status, with display device operation alarm information function, can easily set mold parameters and operate equipment operation.
5.High-speed running system: The machine uses high-precision ball screws and linear guides to ensure that high-precision and high-efficiency. Components are well-known brands with long service life and guaranteed quality.

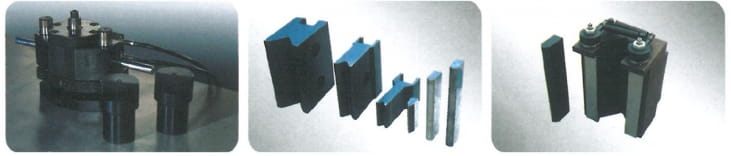

Open Type Hydraulic Busbar Forming Machine Structure and Components
